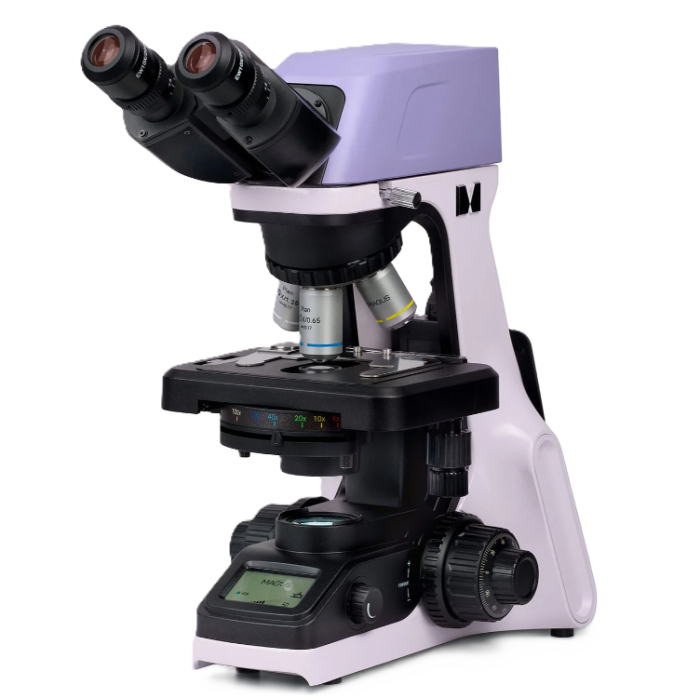

MAGUS Bio DH240 Biological Microscope with Full HD HDMI Camera and LCD Display

MAGUS Bio DH240 Biological Microscope with Full HD HDMI Camera and LCD Display
Brand: MAGUS
Product Code: MDH240
Reviews: (0)
Pre-Order
0 UZS
Buy in one click
Specifications: (see all)
Type of Microscope
Direct biological microscope with transmitted light
Magnification Range
40–1000× (basic configuration)
Eyepiece Type
Widefield eyepieces 10×/20 mm, long eye relief, ±5D diopter correction
Objective Type
Plan-achromatic objectives ∞/0.17
Number of Objectives
4 positions, coded nosepiece
Delivery Information DEPENDING ON THE SIZE AND QUANTITY OF THE PRODUCT Payment Pay quickly and conveniently

The MAGUS Bio DH240 is a modern digital biological microscope designed for professional laboratories, medical diagnostics, research institutions, and educational environments. It combines high-quality optical performance with an advanced imaging system, providing a comprehensive solution for routine and advanced microscopy tasks.

The microscope features a three-channel observation system: traditional eyepiece viewing, digital HDMI imaging, and real-time visualization on a 13.3" Full HD monitor. This configuration is ideal for collaborative work, teaching, documentation, and video-based demonstrations.

The integrated Full HD HDMI camera delivers smooth 60 fps imaging without delays or frame drops, making it perfect for observing live specimens and dynamic processes. The camera works autonomously without a computer — photos, videos, and measurements are performed directly through the built-in software.

The LED illumination ensures stable brightness, natural color reproduction, and a long service life of up to 50,000 hours. Ergonomic design, smooth focusing mechanics, and a comfortable stage make long-term work effortless and precise. A wide range of available accessories further enhances the microscope’s flexibility and research capability.

With its combination of digital visualization, premium optics, and advanced functionality, the MAGUS Bio DH240 is an excellent choice for institutions that value accuracy, productivity, and imaging quality.

Tags: Microscopes

Microscopes
Type of Microscope
Direct biological microscope with transmitted light
Magnification Range
40–1000× (basic configuration)
Eyepiece Type
Widefield eyepieces 10×/20 mm, long eye relief, ±5D diopter correction
Objective Type
Plan-achromatic objectives ∞/0.17
Number of Objectives
4 positions, coded nosepiece
Illumination System
Transmitted light, 3 W LED
Power Supply
AC 100–240 V, 50/60 Hz; external power adapter (hidden compartment)
Condenser
Abbe condenser NA 1.25, pre-aligned, color-coded aperture markings
Focusing Mechanism
Coaxial coarse & fine focus; coarse travel 17 mm; fine resolution 2 µm
Tube Type
Binocular Gemel (Siedentopf) head, 360° rotation, 30° tilt; integrated camera
Stage Type
Two-axis mechanical stage 180×130 mm, belt-drive, without rack
Body Material
Die-cast metal frame
Body Color
White with gray elements
Dimensions
305 × 476 × 280 mm
Weight
6.3 kg
Camera Resolution
8 MP, 3840×2160 (4K)
Connectivity Ports
Wi-Fi (camera), AC/DC power
PC Compatibility
Data transfer via Wi-Fi to PC / laptop / tablet
Software Included
Built-in camera software: photo, video, measurements, exposure control
Country of Manufacture
Czech Republic
