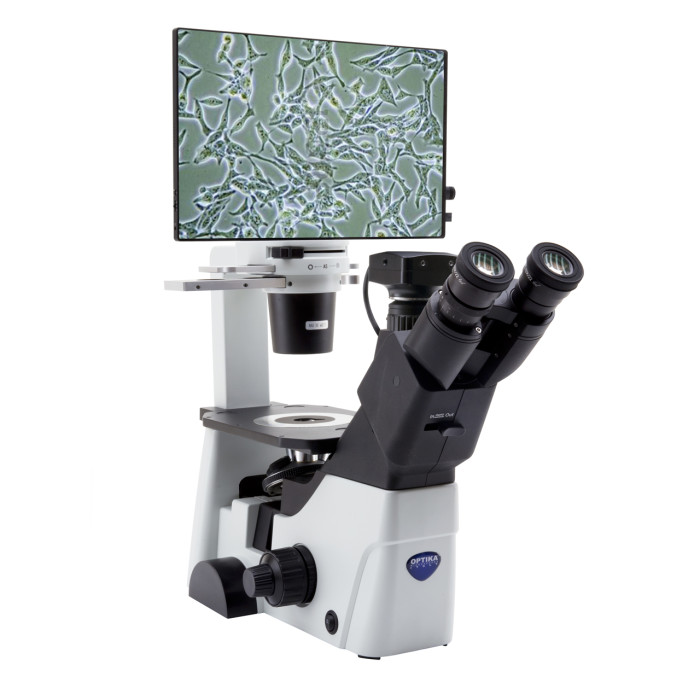

Inverted Microscope OPTIKA IM‑300D

Inverted Microscope OPTIKA IM‑300D
Inverted Microscope OPTIKA IM‑300D
Inverted Microscope OPTIKA IM‑300D
Inverted Microscope OPTIKA IM‑300D
Brand: OPTIKA
Product Code: IM300D
Reviews: (0)
Pre-Order
0 UZS
Buy in one click
Specifications: (see all)
Type of Microscope
Inverted, digital
Magnification Range
100x – 400x
Eyepiece Type
Eyepieces WF10×/22 mm (High Eyepoint) + 15.6″ 4K monitor
Objective Type
IOS LWD W-PLAN PH
Number of Objectives
3 objectives (10x, 20x, 40x)
Delivery Information DEPENDING ON THE SIZE AND QUANTITY OF THE PRODUCT Payment Pay quickly and conveniently

The OPTIKA IM‑300D is a modern inverted digital microscope equipped with phase contrast. It features a 45° inclined trinocular head with 10×, 20×, 40× IOS LWD W‑PLAN PH objectives, X‑LED8 LED illumination, and a built-in Intel micro PC paired with a 15.6‑inch 4K touchscreen. The high-sensitivity 6 MP camera, Optika ProView software, HDMI/USB connectivity, and intuitive touch interface offer ease of use for capturing brightfield and phase contrast images, photos, and videos. An ideal instrument for routine laboratory work and research 

Tags: Microscopes

Microscopes
Type of Microscope
Inverted, digital
Magnification Range
100x – 400x
Eyepiece Type
Eyepieces WF10×/22 mm (High Eyepoint) + 15.6″ 4K monitor
Objective Type
IOS LWD W-PLAN PH
Number of Objectives
3 objectives (10x, 20x, 40x)
Illumination System
X-LED8, 8 W
Power Supply
100–240 V / 50–60 Hz, external adapter
Condenser
ELWD phase condenser N.A. 0.3
Focusing Mechanism
Coaxial coarse and fine focusing, fine focusing travel 0.2 mm, resolution 2 µm
Tube Type
Trinocular (Seidentopf), 45° inclination, split ratio 100/0 and 50/50, diopter adjustment on left tube
Stage Type
Mechanical stage 250×230 mm, X–Y travel 120×80 mm, interchangeable inserts for Petri dishes, slides and multi‑well plates (optional)
Body Material
Metal
Body Color
White/Grey
Dimensions
495×230×540 mm
Weight
9 kg
Camera Resolution
6 MP
Connectivity Ports
USB 3.0, USB 2.0, USB‑C, HDMI, Ethernet
PC Compatibility
Yes
Software Included
Optika ProView
Country of Manufacture
Italy
