AP‑300 Automatic Polarimeter – Fully automatic instrument for optical rotation and sugar scale measurement measurement

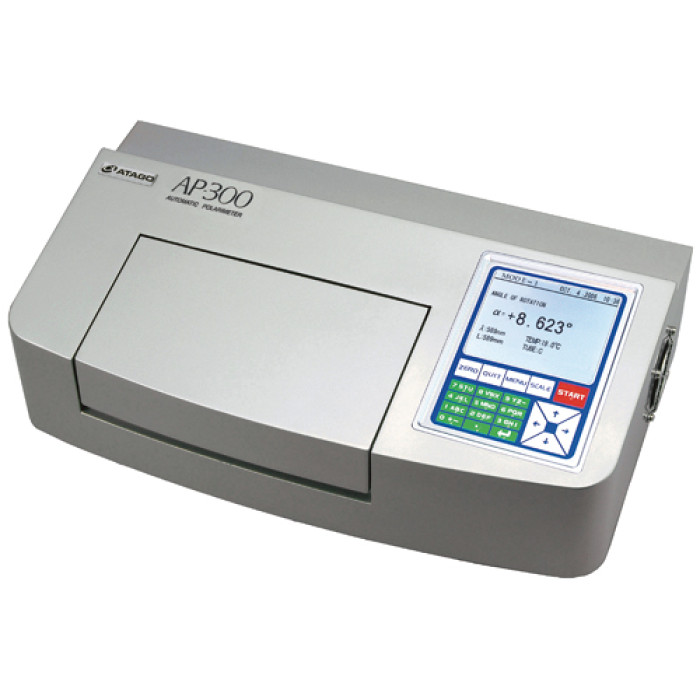

The AP‑300 automatic polarimeter by Atago is a compact and fully automated instrument designed for laboratories and industrial quality control. It accurately measures angle of rotation, International Sugar Scale (°Z), specific rotation, concentration, and purity. With a color backlit LCD, operation is simple: insert the sample tube, press START, and get instant results.

Key features:

• Measurement range: –89.999° to +89.999° for angle, –130.000 to +130.000 °Z for sugar scale, with resolution of 0.001° / 0.001 °Z

• Accuracy: ±0.01° (angle at –35…+35°), ±0.03 °Z (–101…+101 °Z); relative precision ±0.2% Automatic temperature compensation (ISS) between 18–30 °C; temperature accuracy ±0.5 °C, resolution 0.1 °

• Memory stores up to 30 recent measurements; export via RS‑232 or printer; password protection available

• Halogen light source (589 nm), observation tube up to 200 mm in length

• Compliant with HACCP, GMP, GLP, ICUMSA standards; 1–2 year warranty

ompliance with international standards are essential. Using this instrument enhances analysis efficiency and reduces the risk of errors in determining substance concentrations and optical parameters.
