Universal Magnetic Stands for Laboratory Measurements (6210-81, 6210-80, 6210-100)

Universal Magnetic Stands for Laboratory Measurements (6210-81, 6210-80, 6210-100)
Universal Magnetic Stands for Laboratory Measurements (6210-81, 6210-80, 6210-100)
Universal Magnetic Stands for Laboratory Measurements (6210-81, 6210-80, 6210-100)
Universal Magnetic Stands for Laboratory Measurements (6210-81, 6210-80, 6210-100)
Universal Magnetic Stands for Laboratory Measurements (6210-81, 6210-80, 6210-100)
Universal Magnetic Stands for Laboratory Measurements (6210-81, 6210-80, 6210-100)
Universal Magnetic Stands for Laboratory Measurements (6210-81, 6210-80, 6210-100)
Universal Magnetic Stands for Laboratory Measurements (6210-81, 6210-80, 6210-100)
Universal Magnetic Stands for Laboratory Measurements (6210-81, 6210-80, 6210-100)
Universal Magnetic Stands for Laboratory Measurements (6210-81, 6210-80, 6210-100)
Universal Magnetic Stands for Laboratory Measurements (6210-81, 6210-80, 6210-100)
Universal Magnetic Stands for Laboratory Measurements (6210-81, 6210-80, 6210-100)
Universal Magnetic Stands for Laboratory Measurements (6210-81, 6210-80, 6210-100)
Universal Magnetic Stands for Laboratory Measurements (6210-81, 6210-80, 6210-100)
Universal Magnetic Stands for Laboratory Measurements (6210-81, 6210-80, 6210-100)
Universal Magnetic Stands for Laboratory Measurements (6210-81, 6210-80, 6210-100)
Brand: INSIZE
Product Code: 6210
Reviews: (0)
Pre-Order
0 UZS
Found this product cheaper?
Buy in one click
Specifications: (see all)
Measured / controlled parameters
Positioning and fixation of indicators during measurements
Type of studied process
Mechanical
Research method / operating principle
Fixation of indicators on metallic surface using magnetic base
Measurement / experiment range
Depends on the used indicator (stand ensures positioning within stem movement range)
Measurement / analysis accuracy
Defined by the indicator; stand ensures stability and vibration elimination
Delivery Information DEPENDING ON THE SIZE AND QUANTITY OF THE PRODUCT Payment Pay quickly and conveniently

The universal magnetic stands 6210-81, 6210-80 and 6210-100 are designed for mounting digital and dial indicators in precision measurements. With strong magnetic bases (80–100 kgf), they ensure stable attachment to metallic surfaces, making them ideal for experiments in physics, oscillations and vibration studies. Featuring fine adjustment and dovetail groove, they allow precise positioning of sensors, while the Ø8 mm stem holder fits most indicators. These models are widely used in educational and research laboratories where stable and accurate instrument fixation is required. Additionally, universal magnetic stands eliminate errors caused by hand tremors and significantly improve the accuracy of experimental results.

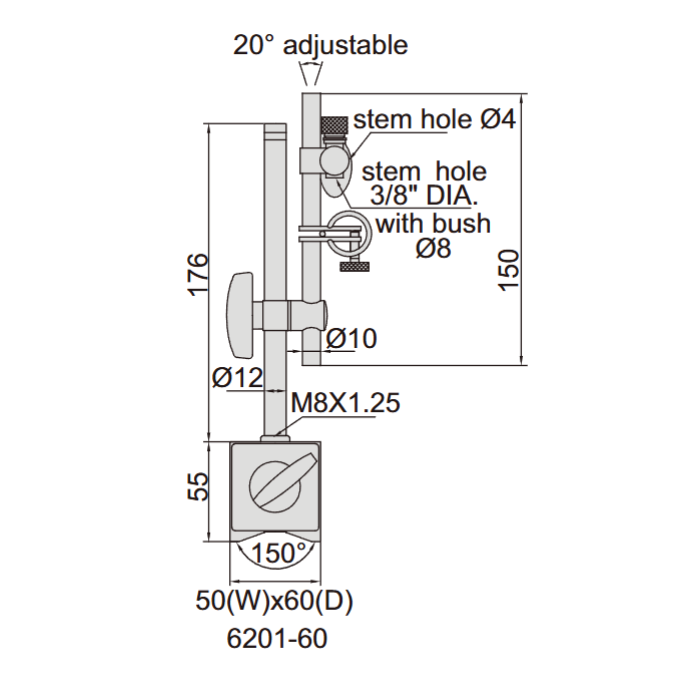

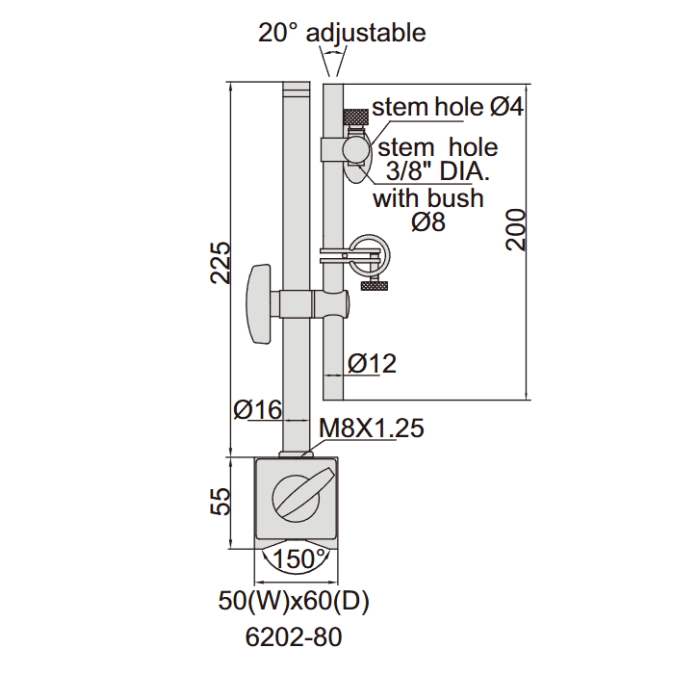

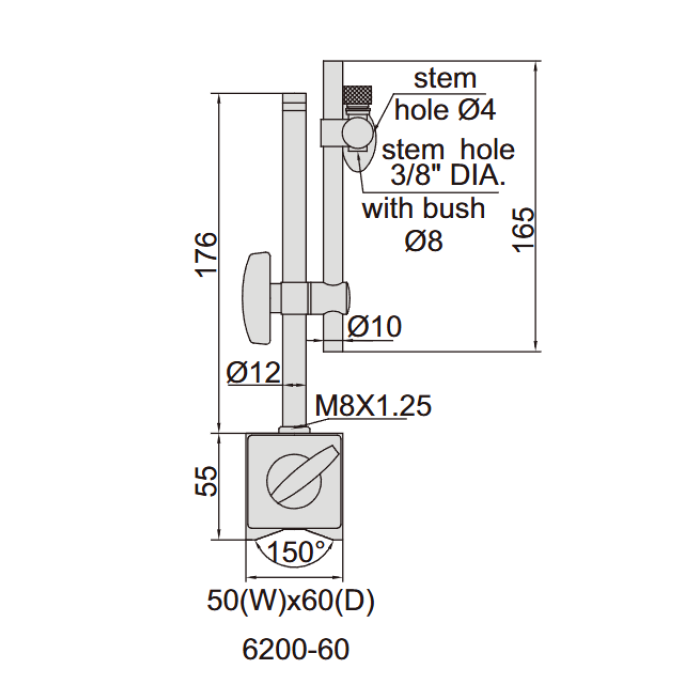

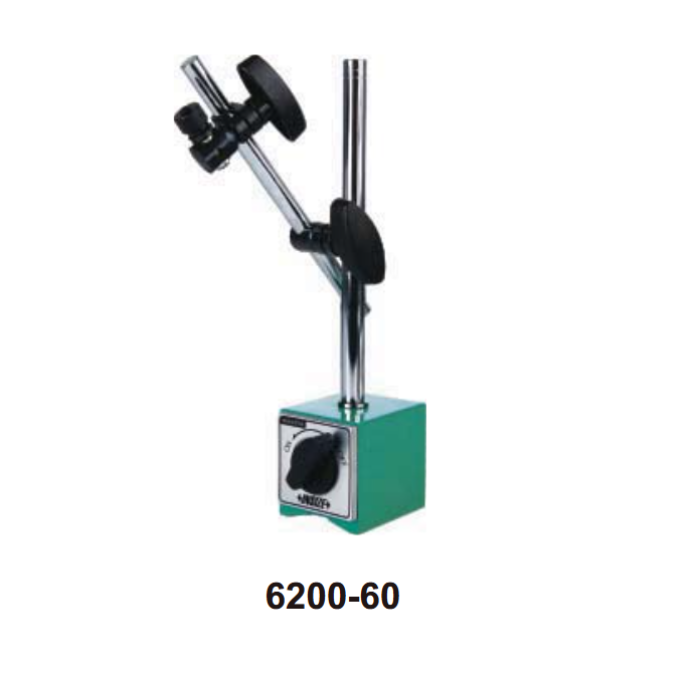

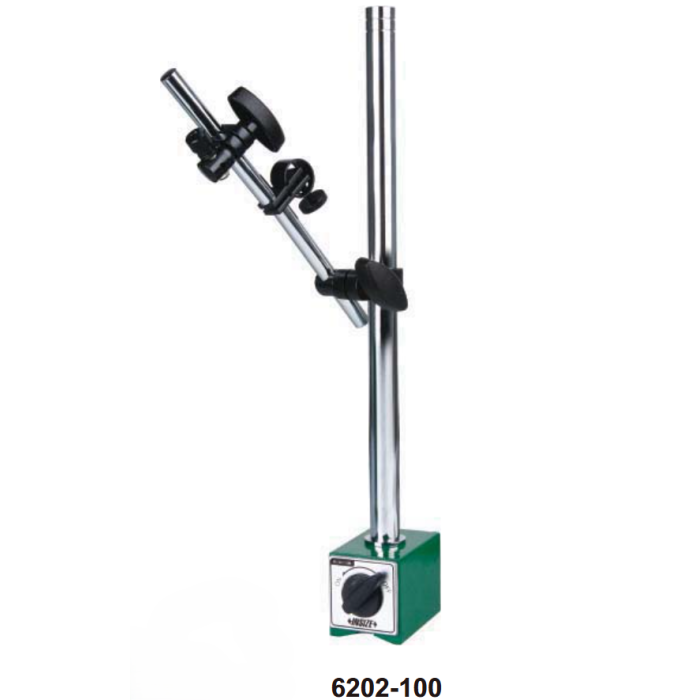

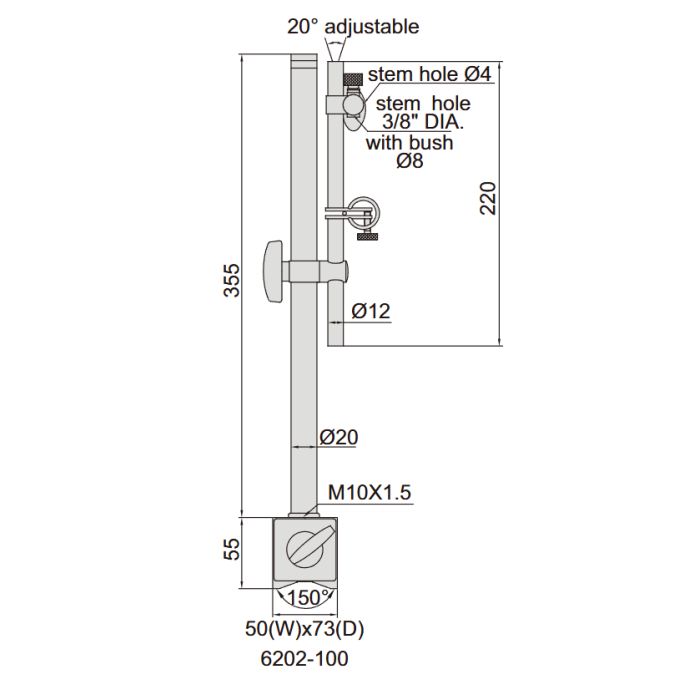

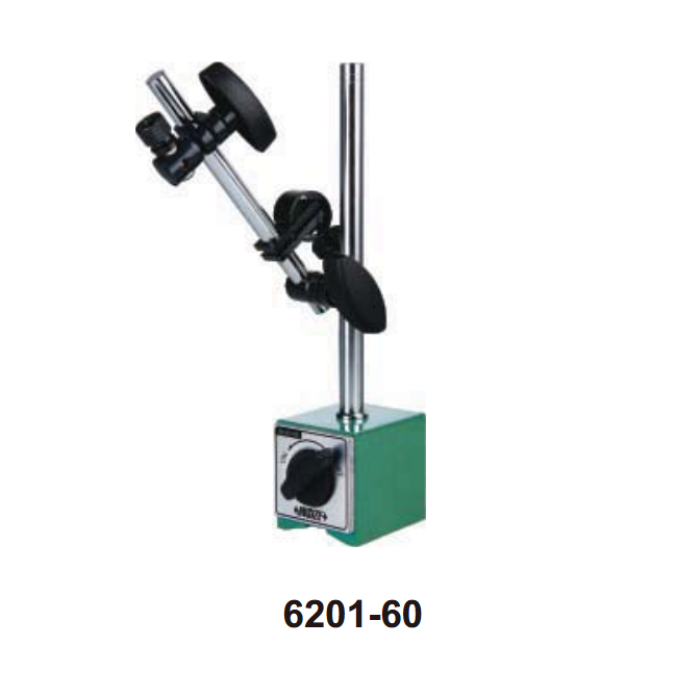

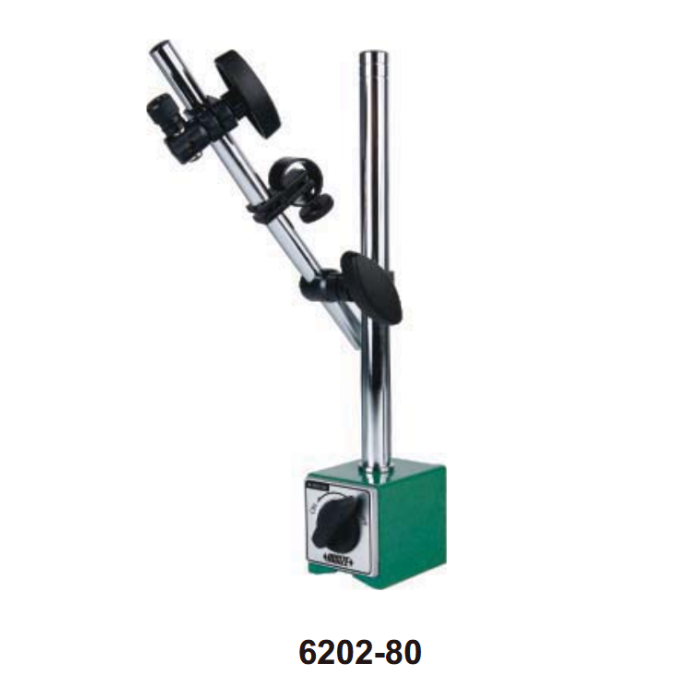

Model code: 6200-60, 6201-60, 6202-80, 6202-100

Magnetic force: 60 kgf / 80 kgf / 100 kgf

Applicable holding stem: Ø8 mm, Ø4 mm, 3/8" DIA (with Ø8 bushing)

Remark: with / without fine adjustment

Base dimensions: 50(W)×60(D) mm or 50(W)×73(D) mm

Post height: 176 mm, 215 mm, 355 mm, 420 mm (depending on model)

Indicator hole diameter: Ø4, Ø8, Ø10, Ø12 mm

Thread: M8×1.25 or M10×1.5

Tags: Laboratory stands Physical

Laboratory stands Physical
Measured / controlled parameters
Positioning and fixation of indicators during measurements
Type of studied process
Mechanical
Research method / operating principle
Fixation of indicators on metallic surface using magnetic base
Measurement / experiment range
Depends on the used indicator (stand ensures positioning within stem movement range)
Measurement / analysis accuracy
Defined by the indicator; stand ensures stability and vibration elimination
Measured physical quantities
Quantities measured by the indicator (linear displacement, deformation, vibration, etc.)
Type of sensors / detectors / indicators
Digital/dial indicators, dial test indicators
Response time / measurement time
—
Manual or automatic control option
Manual adjustment of indicator position
Number of channels / measurement points
Single channel (mounting one indicator)
Design and features
Magnetic base, Ø8 mm/Ø4 mm/3/8" stem with adapter, adjustable height and angle, fine adjustment option (for some models)
Housing / working parts material
Steel, alloys, magnetic base in housing
Power supply availability or mains connection
—
Type of interfaces and outputs
—
Software / PC compatibility
—
Memory / data storage
—
Dimensions
—
Weight
—
Country of origin
Switzerland
