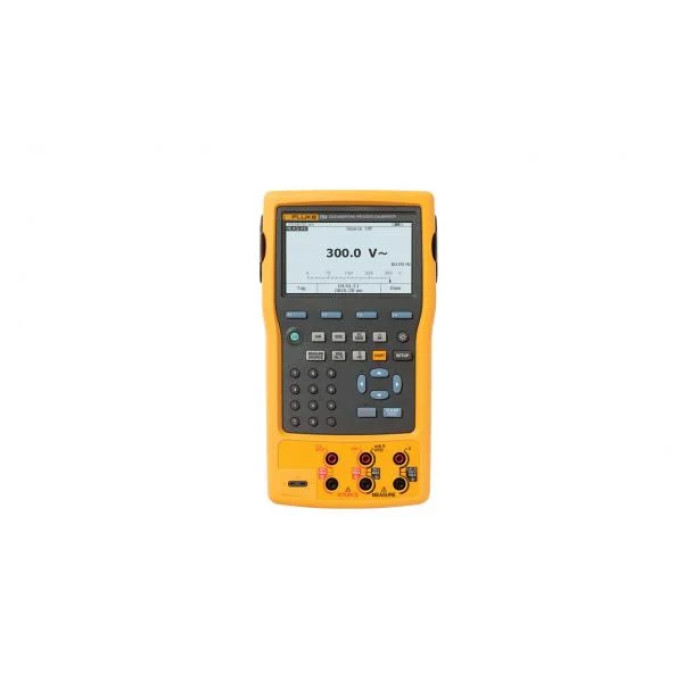

Fluke 754 – Documenting Calibrator for Industrial Process Calibration

Brand: Fluke
Availability: OutOfStock

Fluke 754 – Documenting Calibrator for Industrial Process Calibration

Brand: Fluke

Product Code: F7A54

Reviews: (0)

Pre-Order

0 UZS

Found this product cheaper?

Specifications: (see all)

Measured / controlled parameters

Voltage, current, resistance, temperature (thermocouples, RTD).

Measurement / testing range

Voltage: -30 V to +30 V Current: 0…24 mA Resistance: 0…4000 Ω Temperature: depends on sensor type

Measurement accuracy / precision

±0.015 % of reading

Maximum load / force

—

Frequency / test speed range

—

Delivery Information DEPENDING ON THE SIZE AND QUANTITY OF THE PRODUCT Payment Pay quickly and conveniently

The Fluke 754 is a multifunctional documenting process calibrator designed to measure, source, and document a broad spectrum of electrical signals including voltage, current, resistance, and temperature. It delivers high accuracy with an error margin of ±0.015%, meeting stringent industrial calibration standards and quality requirements. The device features a user-friendly color backlit LCD display that ensures clear visibility of parameters under various working conditions.

Supporting USB and RS-232 interfaces, the Fluke 754 integrates easily with personal computers and specialized Fluke MET/TEAM software for device management, data analysis, and report generation. This capability greatly simplifies maintenance, troubleshooting, and calibration workflows by allowing secure storage and documentation of calibration results.

Additionally, the calibrator operates on either built-in rechargeable batteries or an AC power adapter, offering flexibility and mobility for on-site industrial and laboratory use. Its reliability, versatility, and ease of use make the Fluke 754 a preferred instrument in industrial plants, service centers, and scientific laboratories, ensuring quality control and safety of process operations.

Tags: Calibration and metrology

Calibration and metrology

Measured / controlled parameters

Voltage, current, resistance, temperature (thermocouples, RTD).

Measurement / testing range

Voltage: -30 V to +30 V Current: 0…24 mA Resistance: 0…4000 Ω Temperature: depends on sensor type

Measurement accuracy / precision

±0.015 % of reading

Maximum load / force

—

Frequency / test speed range

—

Test temperature range

0…50 °C

Test humidity range

10…90 % RH, non-condensing

Test method / operating principle

Signal sourcing and measuring, data documenting

Control type

Digital, push-button interface, color LCD

Availability of automatic mode / programmable cycles

Sequential tests and auto data logging supported

Number and type of sensors

Built-in for voltage, current, resistance; supports thermocouples and RTDs

Deformation rate / heating-cooling rate

—

Working chamber / test table material

Durable plastic housing

Working chamber volume / test table size

—

Cooling / ventilation system

—

Heating system

—

Lubrication / medium supply system

—

Test drive type

—

Interfaces and outputs:

USB, RS-232

Software / PC compatibility

Compatible with Fluke MET/TEAM

Memory / data storage availability

Built-in memory for data storage and reports

Display / indication type

Backlit color LCD

Calibration / self-diagnostics capability

Self-diagnosis and factory calibration

Power supply

Battery or AC adapter

Protection class / operational safety

—

Dimensions

Approx. 260 x 180 x 100 mm

Weight

Approx. 1.4 kg

Scope of supply / delivery set

Device, battery, power adapter, user manual

Country of origin

CHINA
