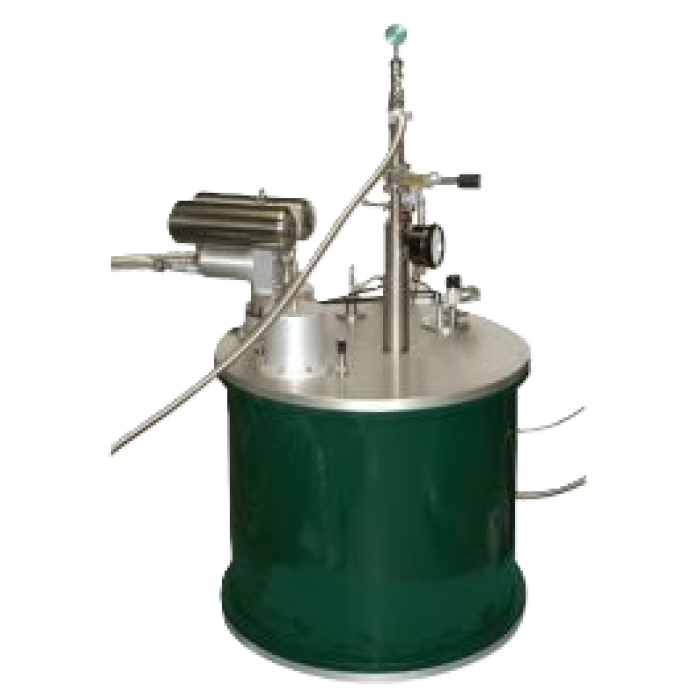

Cryogenic High Field CFMS – Cryogen-Free Measurement System (9–18 Tesla)

Cryogenic High Field CFMS – Cryogen-Free Measurement System (9–18 Tesla)
Brand: Cryogenic
Product Code: HF918
Reviews: (0)
Pre-Order
0 UZS
Found this product cheaper?
Buy in one click
Specifications: (see all)
Measured / controlled parameters
Electrical resistance, conductivity, magnetic susceptibility, heat capacity, temperature, magnetic field.
Measurement / testing range
Temperature
Measurement accuracy / precision
±0.01 K at 10 K, ±0.1 K at 100 K, ±1 K at 300 K.
Maximum load / force
Not applicable (non-mechanical measurement system).
Frequency / testing speed range
depends on installed measurement module
Delivery Information DEPENDING ON THE SIZE AND QUANTITY OF THE PRODUCT Payment Pay quickly and conveniently

The Cryogenic High Field CFMS (9–18 Tesla) is an advanced cryogen-free measurement system developed for the study of material properties under extreme conditions. Using superconducting magnets, the system eliminates the need for liquid helium, offering cost-effective and convenient operation.

It allows researchers to perform a wide range of experiments, including:

  • Measurement of electrical resistance and conductivity;

  • Superconductivity and quantum effects analysis;

  • Magnetization studies and phase transition characterization;

  • Thermal property analysis at cryogenic temperatures.

The system operates within a temperature range of 1.5 K to 400 K and provides stable magnetic fields of up to 18 Tesla. Its modular design supports multiple measurement inserts, including transport, magnetization, and heat capacity modules.

Key Advantages:

  • Cryogen-free technology (no liquid helium required);

  • High magnetic fields up to 18 Tesla;

  • Broad temperature range (1.5–400 K);

  • Modular design for multiple experiment types;

  • Full integration with modern data acquisition and analysis software;

  • High accuracy and long-term stability.

The Cryogenic High Field CFMS is widely adopted in cutting-edge research facilities for solid-state physics, superconductivity, nanotechnology, and quantum materials research, making it a reference tool for advanced material science.

Tags: Mechanical and physical-chemical tests

Mechanical and physical-chemical tests
Measured / controlled parameters
Electrical resistance, conductivity, magnetic susceptibility, heat capacity, temperature, magnetic field.
Measurement / testing range
Temperature
Measurement accuracy / precision
±0.01 K at 10 K, ±0.1 K at 100 K, ±1 K at 300 K.
Maximum load / force
Not applicable (non-mechanical measurement system).
Frequency / testing speed range
depends on installed measurement module
Test temperature range
1.6–400 K (down to 0.3 K with He³ insert).
Test humidity range
Standard laboratory conditions, 5–28 °C.
Test method / operating principle
Cryogenic measurements using superconducting magnets; cryogen-free operation (no liquid helium).
Control type
Computer control with digital Lakeshore controllers.
Availability of automatic mode / programmable cycles
Yes, automatic stabilization of temperature and magnetic field.
Number and type of sensors
Temperature, magnetic field, pressure, and gas-level sensors (Lakeshore series).
Deformation speed / heating-cooling rate
Cool-down from 300 K to 1.6 K in approximately 2 hours.
Working chamber / test table material
Stainless steel and aluminum with vacuum insulation.
Working chamber volume / test table size
Internal diameter 25 mm (VTI Sample Space).
Cooling / ventilation system
Sumitomo SRDK408 cryocooler with water cooling 7 L/min, 5–30 °C.
Lubrication / medium supply system
Gaseous helium circulation in closed CFVTI loop.
Drive type
measurement system
Interfaces and outputs
Ethernet, RS-232, USB for data acquisition and PC connection.
Software / PC compatibility
Cryogenic Control Suite, Lakeshore software, compatible with LabVIEW and Python SDK.
Data storage / memory availability
Yes, internal data storage with external export option.
Display / indication type
Digital display on controller and computer interface.
Calibration / self-diagnostic capability
Automatic calibration and built-in self-diagnostics.
Power supply
3-phase 200 V, 25 A, 50/60 Hz, power 7.5 kVA.
Dimensions
Compressor: 450 × 500 × 632 mm.
Weight
115 kg
Package contents
Superconducting magnet (9–18 T), CFVTI cryostat, cryocooler, Lakeshore controller, helium gas loop, cables, and software.
Country of origin
United Kingdom
