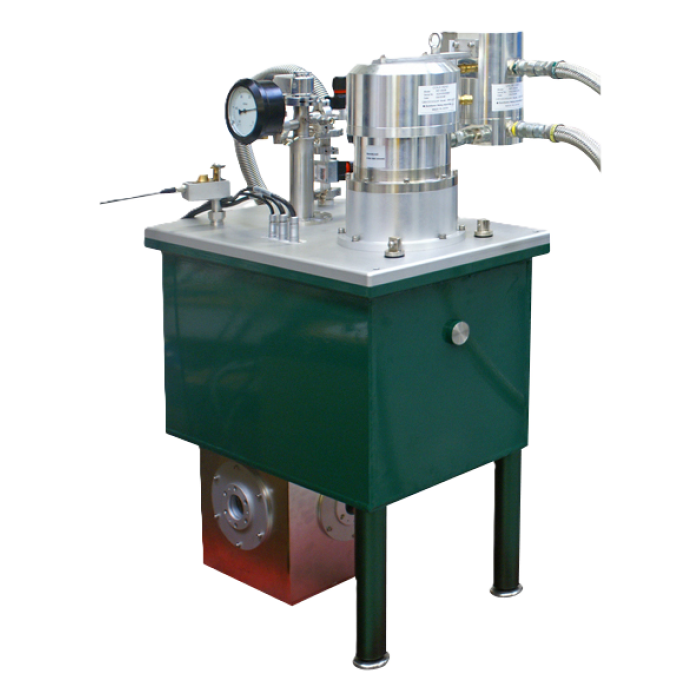

Cryogenic Mini CFMS – Compact Cryogen-Free Measurement System (3–7 Tesla)

Brand: Cryogenic
Availability: OutOfStock

Cryogenic Mini CFMS – Compact Cryogen-Free Measurement System (3–7 Tesla)

Brand: Cryogenic

Product Code: MC307

Reviews: (0)

Pre-Order

0 UZS

Found this product cheaper?

Specifications: (see all)

Measured / controlled parameters

Magnetic susceptibility, magnetization, electrical resistance, Hall effect, heat capacity, thermal conductivity.

Measurement / testing range

Temperature range: 1.6–400 K; Magnetic field: 3–7 Tesla.

Measurement accuracy / precision

Temperature accuracy ±0.01 K at 10 K, ±0.1 K at 100 K, ±1 K at 300 K.

Maximum load / force

non-mechanical measurement system

Frequency / testing speed range

1 Hz – 9 kHz (for AC susceptibility module).

Delivery Information DEPENDING ON THE SIZE AND QUANTITY OF THE PRODUCT Payment Pay quickly and conveniently

The Cryogenic Mini CFMS (3–7 Tesla) is a compact cryogen-free measurement system designed for precise studies of the physical properties of materials under low temperatures and magnetic fields. This modern, fully closed-cycle system operates without liquid helium, making it cost-effective and easy to maintain.

With its modular design, the mCFMS supports a variety of measurement techniques, including electrical transport, heat capacity, magnetization, and thermal conductivity. The system provides a temperature range of 1.6 K to 400 K and magnetic fields up to 7 Tesla, ensuring high precision and stability during experiments.

Key Features:

Temperature range: 1.6–400 K;
Magnetic field: up to 7 Tesla;
Cryogen-free operation (no liquid helium required);
Support for multiple measurement modules;
Automated control and data acquisition;
Compatible with Cryogenic Control Suite and Lakeshore software.

Advantages:

Compact and space-efficient design;
Low maintenance and fast start-up;
Exceptional stability of temperature and magnetic field;
Perfect for university and research laboratories;
Manufactured by Cryogenic Ltd, United Kingdom.

The Mini CFMS provides researchers with a reliable and user-friendly tool for advanced material studies, enabling high-precision measurements in superconductivity, magnetism, and nanoscience under cryogenic and magnetic conditions.

Tags: Mechanical and physical-chemical tests

Mechanical and physical-chemical tests

Measured / controlled parameters

Magnetic susceptibility, magnetization, electrical resistance, Hall effect, heat capacity, thermal conductivity.

Measurement / testing range

Temperature range: 1.6–400 K; Magnetic field: 3–7 Tesla.

Measurement accuracy / precision

Temperature accuracy ±0.01 K at 10 K, ±0.1 K at 100 K, ±1 K at 300 K.

Maximum load / force

non-mechanical measurement system

Frequency / testing speed range

1 Hz – 9 kHz (for AC susceptibility module).

Test temperature range

1.6 – 400 K (down to 0.3 K with optional ³He insert).

Test humidity range

Standard laboratory environment 5–28 °C.

Test method / operating principle

Cryogenic measurements in magnetic field using superconducting magnet, cryogen-free operation.

Control type

Fully computer-controlled (Windows, LabVIEW, Python API).

Availability of automatic mode / programmable cycles

Yes, automatic control of field and temperature stabilization.

Number and type of sensors

Temperature (LakeShore), magnetic field, pressure and helium level sensors.

Deformation speed / heating-cooling rate

Cooldown from 300 K to 1.6 K in under 12 hours.

Working chamber / test table material

Stainless steel and aluminum with vacuum insulation.

Working chamber volume / test table size

30 mm sample space diameter (VTI).

Cooling / ventilation system

Pulse-tube cryocooler Sumitomo SRDK408 with water cooling.

Lubrication / medium supply system

Gaseous helium in closed CFVTI circulation loop.

Drive type

Not applicable.

Interfaces and outputs

Ethernet, RS-232, USB for data acquisition and control.

Software / PC compatibility

Cryogenic Control Suite, LabVIEW, Python SDK, Windows 10 compatible.

Data storage / memory availability

Yes, internal storage and PC export.

Display / indication type

Digital display via PC interface.

Calibration / self-diagnostic capability

Automatic calibration and built-in diagnostics.

Power supply

3-phase 200 V, 25 A, 50/60 Hz, 7.5 kVA.

Dimensions

Compressor: 450 × 500 × 632 mm.

Weight

115 kg

Package contents

mCFMS (3–7 T) system, cryocooler, superconducting magnet, controller, software, cables, sensors.

Country of origin

United Kingdom
