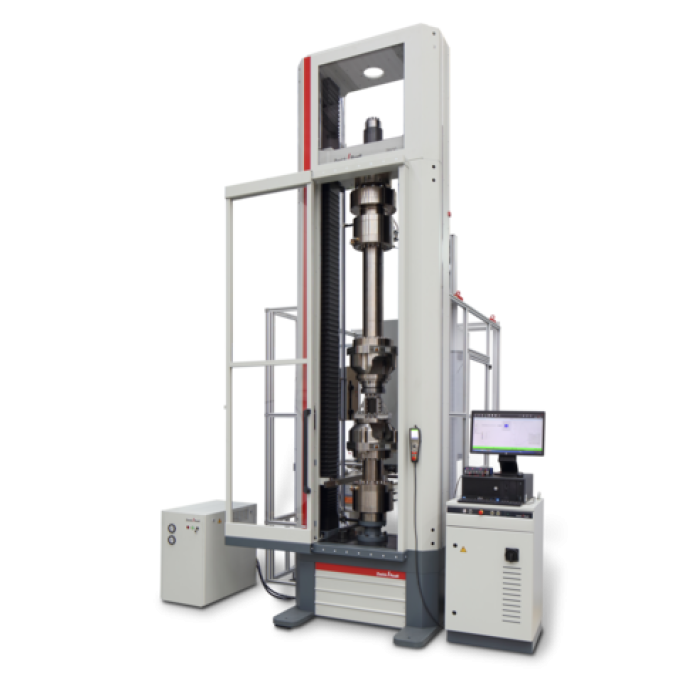

ZwickRoell Z600E – Universal Testing Machine up to 600 kN

Brand: Zwick Roell
Availability: OutOfStock

ZwickRoell Z600E – Universal Testing Machine up to 600 kN

Brand: Zwick Roell

Product Code: Z600E

Reviews: (0)

Pre-Order

0 UZS

Found this product cheaper?

Specifications: (see all)

Measured / controlled parameters

Tensile and compression force, elongation, stress–strain curve, crosshead speed, specimen stiffness

Measurement / testing range

Up to 600 kN (in tensile and compression tests)

Measurement accuracy / precision

Class 0.5 from 1% of Fmax / Class 1 from 0.2% of Fmax (EN ISO 7500-1, ASTM E4, JIS B 7721)

Maximum load / force

600 kN

Frequency / testing speed range

Crosshead speed: 0.00005 … 400 mm/min

Delivery Information DEPENDING ON THE SIZE AND QUANTITY OF THE PRODUCT Payment Pay quickly and conveniently

The ZwickRoell Z600E is a high-capacity universal testing machine designed for mechanical tests of materials and components under loads up to 600 kN. It performs tensile, compression, flexure, and shear tests with high accuracy, fully compliant with international standards (ISO, ASTM, EN).

The machine is equipped with the testControl II control system, ensuring maximum measurement reliability and flexibility in setting test parameters. Together with the testXpert III software, it provides a complete testing workflow – from setup and execution to data analysis and reporting.

Applications:

Metallurgy and alloys
Mechanical engineering and construction materials
Energy and turbine applications
Scientific and research laboratories

With its high frame stiffness and adaptability to a wide range of testing scenarios, the ZwickRoell Z600E is a universal solution for testing heavy loads and high-strength materials.

Tags: Mechanical and physical-chemical tests

Mechanical and physical-chemical tests

Measured / controlled parameters

Tensile and compression force, elongation, stress–strain curve, crosshead speed, specimen stiffness

Measurement / testing range

Up to 600 kN (in tensile and compression tests)

Measurement accuracy / precision

Class 0.5 from 1% of Fmax / Class 1 from 0.2% of Fmax (EN ISO 7500-1, ASTM E4, JIS B 7721)

Maximum load / force

600 kN

Frequency / testing speed range

Crosshead speed: 0.00005 … 400 mm/min

Test temperature range

+10 … +35 °C (standard); optional high-temperature furnaces

Test humidity range

20 … 90 % (non-condensing)

Test method / operating principle

Electromechanical loading with ball screw drive and digital control (testControl II)

Control type

Digital, computer-controlled via testXpert III software and testControl II console

Availability of automatic mode / programmable cycles

Yes, fully automated test sequences via testXpert III

Number and type of sensors

Load cell (600 kN), extensometers (optional), displacement sensors, Hiperface® feedback system

Deformation speed / heating-cooling rate

Adjustable strain rate (0.00005 … 400 mm/min); heating/cooling via external chambers (optional)

Working chamber / test table material

Steel reinforced base, hard-chromed guide columns

Working chamber volume / test table size

Test area width: 780 mm; test area height: 3497 mm; crosshead stroke: 934 mm

Cooling / ventilation system

—

Lubrication / medium supply system

Pre-stressed precision ball screws, virtually maintenance-free

Drive type

Electromechanical AC servo drive with Hiperface® feedback system

Interfaces and outputs

Ethernet (real-time EtherCAT®), USB (optional modules), PCIe slot for sensors

Software / PC compatibility

testXpert III software (Windows 10, 64-bit), supports multi-channel modules and extensometers

Data storage / memory availability

Yes, via testXpert III, automatic results storage

Display / indication type

Display via PC and testControl II console

Calibration / self-diagnostic capability

Yes, built-in functions; automatic zero correction

Power supply

3×400 V ±10 %, 50/60 Hz, power consumption 9 kVA

Dimensions

Height: 4565 mm; width: 1220 mm; depth: 1180 mm

Weight

3420 kg (without grips); 4080 kg (with hydraulic grips)

Package contents

Z600E testing machine, 600 kN load cell, testControl II system, testXpert III software, control console, cables, optional hydraulic grips and extensometers

Country of origin

Germany
