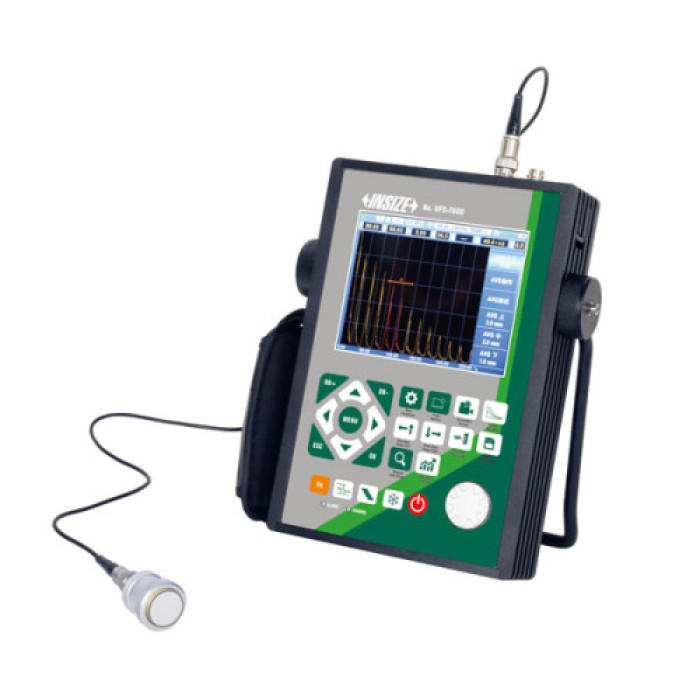

INSIZE UFD-T680 — High-Resolution Digital Ultrasonic Flaw Detector

Brand: INSIZE
Availability: OutOfStock

INSIZE UFD-T680 — High-Resolution Digital Ultrasonic Flaw Detector

Brand: INSIZE

Product Code: T680

Reviews: (0)

Pre-Order

0 UZS

Found this product cheaper?

Specifications: (see all)

Controlled / measured parameters

Ultrasonic wave travel time, depth and size of defects, signal amplitude, distance to the defect.

Measurement / control range

0–6000 mm (depending on material and settings).

Measurement accuracy / precision

±0.1 mm in depth measurement.

Resolution

—

Maximum travel range / inspection area

Limited by ultrasonic probing range, depends on the transducer used.

Delivery Information DEPENDING ON THE SIZE AND QUANTITY OF THE PRODUCT Payment Pay quickly and conveniently

The INSIZE UFD-T680 Digital Ultrasonic Flaw Detector is a state-of-the-art professional instrument designed for non-destructive testing of metals, welds, and various industrial structures. Featuring a bright 640×480 TFT color display, it provides clear visualization of signals and analysis results. Its rugged metal housing with strong electromagnetic shielding ensures stable operation even in challenging industrial environments.
The UFD-T680 offers a wide range of ultrasonic parameter adjustments, including sound velocity, inspection depth, and gain control, enabling adaptation to various materials and inspection tasks. With built-in memory and PDF report export capabilities, it simplifies inspection documentation. Its intuitive interface and user-friendly controls make it efficient and easy to operate.
Widely used in mechanical engineering, shipbuilding, energy, oil & gas, and other industries requiring accurate internal defect detection without damaging the tested material.

Tags: Quality control and video measurement systems

Quality control and video measurement systems

Controlled / measured parameters

Ultrasonic wave travel time, depth and size of defects, signal amplitude, distance to the defect.

Measurement / control range

0–6000 mm (depending on material and settings).

Measurement accuracy / precision

±0.1 mm in depth measurement.

Resolution

—

Maximum travel range / inspection area

Limited by ultrasonic probing range, depends on the transducer used.

Operating frequency range

0.5–20 MHz.

Operating temperature range

-10…+50 °C.

Operating humidity range

Up to 90% non-condensing.

Inspection method / operating principle

Ultrasonic pulse-echo method with digital signal processing.

Control type

Digital, keypad, with on-screen menu.

Availability of automatic mode / programmable cycles

Yes – automatic defect detection, measurement markers, data storage.

Number and type of sensors / measuring heads

Supports various ultrasonic transducers (straight and angle beam).

Measurement / data processing speed

Real-time, up to 1000 measurements/sec.

Housing / working surface material

Aluminum alloy with protective coating.

Working area / measurement table size

—

Lighting system

—

Cooling / ventilation system

Passive cooling.

Drive type

—

Interfaces and outputs

USB, VGA, RS-232.

Software / PC compatibility

INSIZE software for analysis and reporting, compatible with Windows.

Memory availability / data and report

Built-in memory for 1000+ reports, export to PDF/Excel.

Display / indication type

Color TFT display 640×480 pixels.

Calibration / self-diagnostics capability

Internal calibration and self-test available.

Power supply

7.4 V Li-ion battery, AC adapter 100–240 V, 50/60 Hz.

Protection class / operational safety

IP65 (dust and splash protection).

Dimensions

263 × 170 × 61 mm.

Weight

1.5 kg (with battery).

Scope of supply

Device, ultrasonic transducer, charger, interface cables, software, case, manual.

Country of origin

China.
