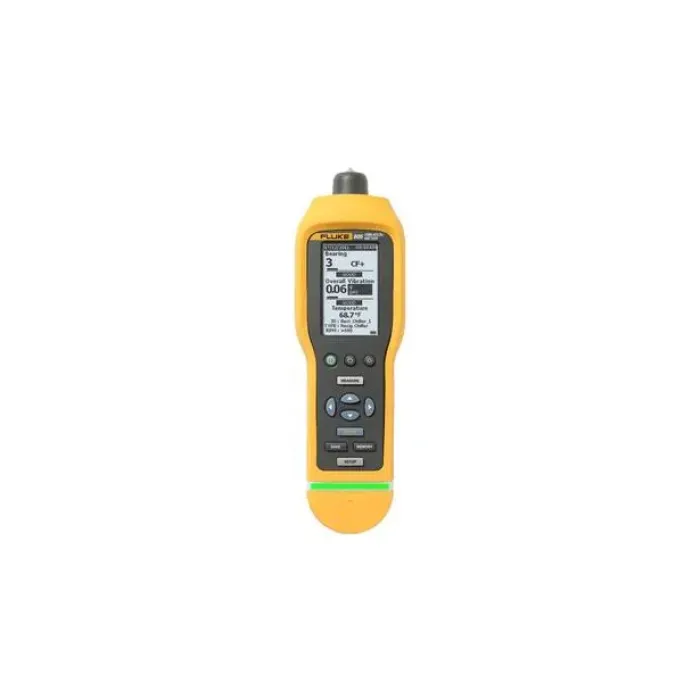

Fluke 805 Vibration Meter – Portable Device for Vibration and Bearing Condition Monitoring

Brand: Fluke
Availability: OutOfStock

Fluke 805 Vibration Meter – Portable Device for Vibration and Bearing Condition Monitoring

Brand: Fluke

Product Code: F805

Reviews: (0)

Pre-Order

0 UZS

Found this product cheaper?

Specifications: (see all)

Controlled / measured parameters

Overall vibration level, vibration frequency, bearing condition, signal amplitude.

Measurement / control range

10 Hz – 1 kHz (overall vibration), 4 kHz – 20 kHz (bearings).

Measurement accuracy / precision

±5% of reading or ±0.02 mm/s RMS (depending on range).

Resolution

0.01 mm/s RMS.

Maximum travel range / inspection area

Limited to sensor contact point, applicable to stationary and rotating machines.

Delivery Information DEPENDING ON THE SIZE AND QUANTITY OF THE PRODUCT Payment Pay quickly and conveniently

The Fluke 805 Vibration Meter is a professional-grade tool for measuring vibration levels in machinery and diagnosing bearing conditions. Designed for predictive maintenance specialists, this device combines ease of use with exceptional measurement accuracy. Unlike standard vibration meters, the Fluke 805 features a unique sensor that minimizes operator and measurement condition variability, ensuring consistent and repeatable results. Its intuitive user interface, high-resolution color display, and four-level severity scale (from “Good” to “Serious”) allow for quick decision-making in the field. The 805 can also measure a specific frequency range critical for bearing diagnostics and export data to a PC-compatible format for further analysis. Its rugged, compact design makes it suitable for use in industrial environments with high dust and vibration levels. This instrument is an essential tool for preventive maintenance, helping reduce unplanned downtime and extend machinery lifespan.

Tags: Quality control and video measurement systems

Quality control and video measurement systems

Controlled / measured parameters

Overall vibration level, vibration frequency, bearing condition, signal amplitude.

Measurement / control range

10 Hz – 1 kHz (overall vibration), 4 kHz – 20 kHz (bearings).

Measurement accuracy / precision

±5% of reading or ±0.02 mm/s RMS (depending on range).

Resolution

0.01 mm/s RMS.

Maximum travel range / inspection area

Limited to sensor contact point, applicable to stationary and rotating machines.

Operating frequency range

10 Hz – 20 kHz.

Operating temperature range

–20 °C to +50 °C.

Operating humidity range

Up to 95% non-condensing.

Inspection method / operating principle

Contact vibration analysis using piezoelectric accelerometer.

Control type

Digital, push-button interface.

Availability of automatic mode / programmable cycles

Yes, automatic equipment condition classification.

Number and type of sensors / measuring heads

1 built-in piezoelectric sensor.

Measurement / data processing speed

Instant processing with result display in less than 5 seconds.

Housing / working surface material

Durable impact-resistant plastic with rubber inserts.

Working area / measurement table size

—

Lighting system

Built-in status indication on display.

Cooling / ventilation system

—

Drive type

—

Interfaces and outputs

USB.

Software / PC compatibility

Compatible with Fluke software for data analysis.

Memory availability / data and report

Yes, built-in memory for storing measurement results.

Display / indication type

Color LCD with backlight.

Calibration / self-diagnostics capability

Yes, factory calibration and self-check function.

Power supply

2 × AA batteries or AA rechargeable batteries, 1.5 V.

Protection class / operational safety

IP54.

Dimensions

140 × 70 × 45 mm.

Weight

400 g.

Scope of supply

Fluke 805 Vibration Meter, user manual, carrying case, USB cable.

Country of origin

China.
