MAGUS Bio 290T Trinocular Biological Microscope

Brand: MAGUS
Availability: OutOfStock

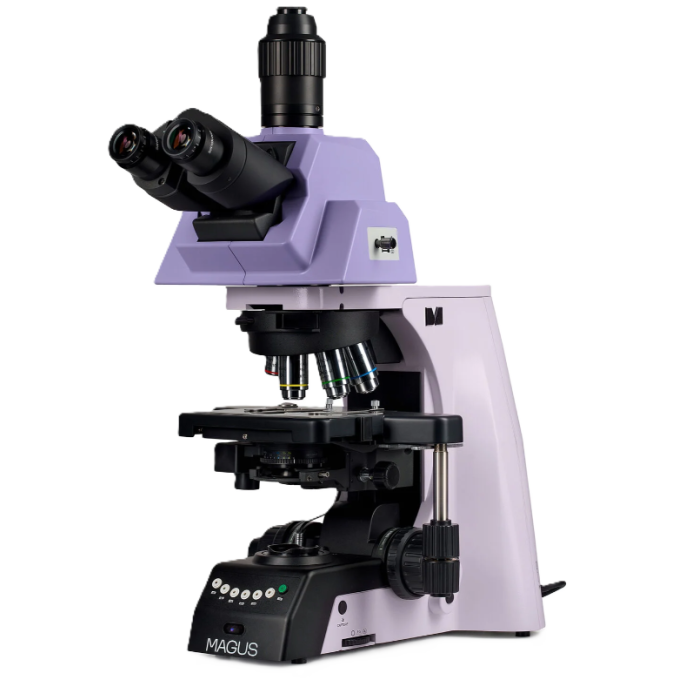

MAGUS Bio 290T Trinocular Biological Microscope

Brand: MAGUS

Product Code: M290T

Reviews: (0)

Pre-Order

0 UZS

Found this product cheaper?

Specifications: (see all)

Type of Microscope

Direct biological microscope with motorized nosepiece and Köhler transmitted illumination

Magnification Range

Basic configuration: 40–1000× Options: 40–1250/1500/2000×

Eyepiece Type

Eyepieces 10×/25 mm with ±5D diopter adjustment and long eye relief, 30 mm mounting diameter Options: 10×/22 with scale/grid/crosshair, 12.5×/16, 15×/16, 20×/12, 30×/8

Objective Type

Plan achromatic infinity-corrected objectives (∞), 60 mm parfocal height Options: plan achromats 2×, 60×; plan apochromat 60×/1.42; special fluorescent plan semi-apochromats

Number of Objectives

Motorized 6-position revolving nosepiece

Delivery Information DEPENDING ON THE SIZE AND QUANTITY OF THE PRODUCT Payment Pay quickly and conveniently

The MAGUS Bio 290T is a premium-class trinocular biological microscope designed specifically for professional laboratory applications requiring exceptional image quality and precision. As part of the advanced MAGUS optical series, this model delivers outstanding clarity, contrast, and color accuracy across all magnifications.

Its trinocular head enables simultaneous visual observation and digital imaging, making the Bio 290T ideal for clinical diagnostics, academic instruction, scientific research, and documentation-intensive laboratory environments.

The microscope features a robust ergonomic frame, smooth coaxial focusing, a large mechanical stage, and powerful halogen illumination for stable, evenly distributed light. Depending on the configuration, the 290T is equipped with plan-achromatic or plan-apochromatic infinity-corrected optics, offering a flat field of view and minimal chromatic aberration.

A wide selection of optional accessories — digital cameras, phase-contrast kits, darkfield condensers, polarization modules, calibration slides, eyepiece and objective upgrades — expands the system to suit any laboratory task.

The MAGUS Bio 290T is an excellent choice for laboratories that demand precision, reliability, and professional-grade imaging performance.

Tags: Microscopes

Microscopes

Type of Microscope

Direct biological microscope with motorized nosepiece and Köhler transmitted illumination

Magnification Range

Basic configuration: 40–1000× Options: 40–1250/1500/2000×

Eyepiece Type

Eyepieces 10×/25 mm with ±5D diopter adjustment and long eye relief, 30 mm mounting diameter Options: 10×/22 with scale/grid/crosshair, 12.5×/16, 15×/16, 20×/12, 30×/8

Objective Type

Plan achromatic infinity-corrected objectives (∞), 60 mm parfocal height Options: plan achromats 2×, 60×; plan apochromat 60×/1.42; special fluorescent plan semi-apochromats

Number of Objectives

Motorized 6-position revolving nosepiece

Illumination System

Transmitted illumination, 3 W LED, Köhler illumination

Power Supply

AC mains 100–240 V, 50/60 Hz

Condenser

Motorized condenser NA 0.9/0.25 with flip-up front lens, height-adjustable and centerable, iris aperture diaphragm, dovetail mount

Focusing Mechanism

Coaxial coarse and fine focusing knobs, 35 mm coarse travel, 18.85 mm per turn; fine focus step 1 µm; coarse tension adjustment and focus lock

Tube Type

Trinocular viewing head, adjustable inclination 0–35°, light path split 0/100, 100/0, 80/20; vertical photo tube for digital camera
