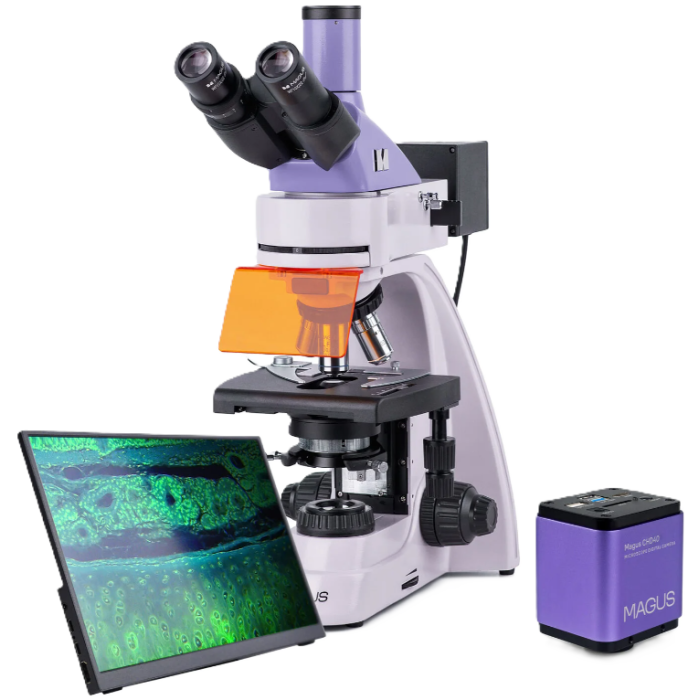

MAGUS Lum D400L LCD Fluorescence Microscope with LCD Visualization System

Brand: MAGUS
Availability: OutOfStock

MAGUS Lum D400L LCD Fluorescence Microscope with LCD Visualization System

Brand: MAGUS

Product Code: MLD400LLCD

Reviews: (0)

Pre-Order

0 UZS

Found this product cheaper?

Specifications: (see all)

Type of Microscope

Fluorescence upright biological microscope with transmitted and reflected light observation

Magnification Range

Basic configuration: 40–1000× Options: up to 1250× / 1500× / 2000× / 2500×

Eyepiece Type

Widefield eyepieces 10x/22 mm, eye relief ~10 mm (*options: 10x/22 with scale, 12.5x/14, 15x/15, 20x/12, 25x/9)

Objective Type

Infinity plan achromatic objectives and infinity plan fluorite objectives for fluorescence (PL, PL FL, ∞/0.17)

Number of Objectives

5-position revolving nosepiece, 4 objectives in basic configuration (4x, 10x, 40x FL, 100x) + one free slot

Delivery Information DEPENDING ON THE SIZE AND QUANTITY OF THE PRODUCT Payment Pay quickly and conveniently

The MAGUS Lum D400L LCD is a professional-grade fluorescence microscope designed for advanced biological, clinical, and educational applications. It combines high-precision infinity-corrected optics, powerful fluorescence illumination, and modern LCD-based digital visualization, making it a versatile tool for fluorescence and brightfield microscopy.

The trinocular head allows comfortable viewing and easy camera installation, while the integrated LCD monitor enables real-time image display, group demonstrations, and ergonomic operation without extended time spent using eyepieces.

Its 100W mercury illumination system provides intense excitation light with discrete emission peaks suitable for a wide range of fluorochromes. The four filter sets — UV, Violet, Blue, and Green — support high-contrast imaging of DAPI, FITC, TRITC, and many other fluorescent dyes.

The bright 30W halogen transmitted-light illuminator enables accurate observation in brightfield mode. High-quality plan achromatic and fluorite objectives ensure excellent resolution and clarity in both fluorescence and transmitted light microscopy.

The system can be expanded with optional objectives, eyepieces, phase contrast, darkfield, polarization attachments, and digital imaging solutions. This makes the MAGUS Lum D400L LCD a powerful, flexible platform for teaching, diagnostics, and scientific research.

Additional required closing sentence:
By combining advanced fluorescence illumination, digital LCD visualization, and precision optics, the MAGUS Lum D400L LCD provides outstanding clarity and performance, enabling accurate analysis even in complex scientific applications.

Tags: Microscopes

Microscopes

Type of Microscope

Fluorescence upright biological microscope with transmitted and reflected light observation

Magnification Range

Basic configuration: 40–1000× Options: up to 1250× / 1500× / 2000× / 2500×

Eyepiece Type

Widefield eyepieces 10x/22 mm, eye relief ~10 mm (*options: 10x/22 with scale, 12.5x/14, 15x/15, 20x/12, 25x/9)

Objective Type

Infinity plan achromatic objectives and infinity plan fluorite objectives for fluorescence (PL, PL FL, ∞/0.17)

Number of Objectives

5-position revolving nosepiece, 4 objectives in basic configuration (4x, 10x, 40x FL, 100x) + one free slot

Illumination System

Transmitted light: 3W LED with constant color temperature Reflected light (fluorescence): four 5W LEDs of different wavelengths (UV, V, B, G)

Power Supply

Built-in microscope power supply, AC mains 85–265 V, 50/60 Hz Camera and monitor: 12 V/1 A DC adapter, AC 100–240 V, 50/60 Hz

Condenser

Abbe condenser N.A. 1.25, center-adjustable and height-adjustable, iris aperture diaphragm, slot for darkfield and phase contrast sliders, dovetail mount

Focusing Mechanism

Coaxial coarse and fine focusing knobs on both sides, coarse travel ~21 mm, ~39.8 mm per revolution, fine focusing scale 2 µm, coarse tension adjustment and coarse lock

Tube Type

Trinocular Gemel (Siedentopf) head, 30° inclination, 360° tube rotation, head magnification 1×, interpupillary distance 48–75 mm, eyepiece diameter 30 mm

Stage Type

Double-layer mechanical stage 180×150 mm, rackless X-axis, belt-driven, travel range 75×50 mm; black plate for reflected-light operation

Body Material

Metal stand and body with rigid construction, durable painted finish

Body Color

Light (white/grey) body with black controls and accents

Dimensions

Approx. 200 × 436 × 400 mm (without packaging)

Weight

8 kg

Camera Resolution

8 MP, up to 3840×2160 (4K UHD), 30 fps at 4K and Full HD
